Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard

Guangzhou Jet Scaffold & Formwork System Co., Ltd.
Contact Now
    Buy cheap Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard from wholesalers

    Buy cheap Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard from wholesalers
    • Buy cheap Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard from wholesalers
    • Buy cheap Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard from wholesalers
    • Buy cheap Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard from wholesalers

    Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard

    Ask Lasest Price
    Brand Name : JET
    Model Number : RS
    Certification : SGS,GE,GB
    Payment Terms : Western Union, MoneyGram
    Delivery Time : 20 Worker Days
    Price : negotiable
    • Product Details
    • Company Profile

    Steel Layher Allround Scaffolding System British Standard Scaffolding SGS Standard

    SGS standard Ringlock Scaffolding System, Steel Ringlock Scaffolding Standards Construction Materials


    Ringlock scaffolding system specification

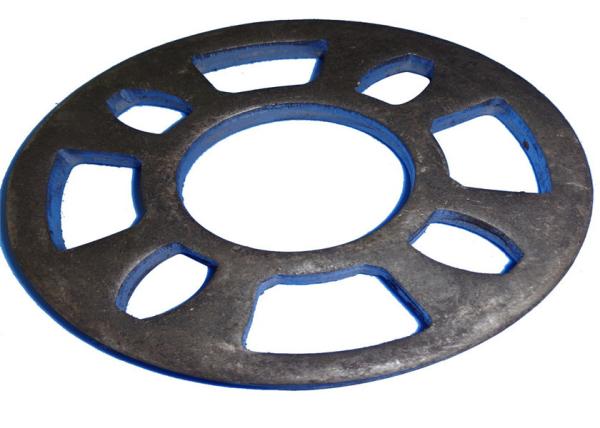

    Ringlock scaffolding system is the most advanced all round wedge lock type scaffolding system. This kind of scaffolding system consists of scaffolding standards with ring every 0.5 meter and scaffolding horizontal with ledger end. When connected together, the Ledger end and scaffold ring create a very strong connection.
    It is easy to assembly and dismantle by just one person at any height.
    The basic components of ringlock scaffolding: scaffolding standard, scaffolding ledger, scaffolding diagonal brace,steel plank and scaffolding base jack.
    As the factory with more than 10 years experience in automatic welding production line, we can control the stable and qualified products and meet every customers’ timely specification and delivery requirement.


    Size of standards:

    Length(mm)

    Diameter(mm)

    Tube Thickness(mm)

    Surface Treatment

    3000

    48

    3.0/3.25

    Hot dip galvanized/Powder coated

    2500

    48

    3.0/3.25

    Hot dip galvanized/Powder coated

    2000

    48

    3.0/3.25

    Hot dip galvanized/Powder coated

    1000

    48

    3.0/3.25

    Hot dip galvanized/Powder coated


    Size of ledger:

    Length(mm)

    Diameter(mm)

    Tube Thickness(mm)

    Surface Treatment

    2000

    48

    3.0/3.25

    Hot dip galvanized/Powder coated

    1770

    48

    3.0/3.25

    Hot dip galvanized/Powder coated

    1150

    48

    3.0/3.25

    Hot dip galvanized/Powder coated

    Product Parameters:


    Part NameMaterialTechnologyOutter DiameterThicknessRemarks
    Ringlock StandardsQ345BHDG or power coated48mm/60mm3.25mmsize and length can be customized
    Ringlock LedgersQ235BHDG or power coated48mm3mmsize and length can be customized
    Diagonal BraceQ235BHDG or power coated48mm2.75mmsize and length can be customized
    Ringlock PlankQ235BHDG or power coatedNA1.5mmsize can be customized
    Ringlock Jack BaseQ235BHDG or power coated38mm/48mm4mmBase plate: 120*120*6mm; screw: 700*38mm



    Company Information

    Company NameGuangzhou Jet caffold&formwork System Co., Ltd
    ISO9001:2015 certified factory for manufacturing and sales of scaffolding
    19years, 120 workers, 60,000 Sqm2 flooring
    Auto-welding lines, HDG and painting lines
    Products
    Scaffolding and formwork system
    CertificationAS/NZS 1576, ANSI SSFI,SGS,GE
    Main ProductsScaffolding pipe, Ringlock Scaffold, Cuplock Scaffold,Steel plank,Scaffolding ouplers, Formwork etc.

    Packaging & Delivery

    Packaging Details
    In bulk or steel pallet or as your request
    Packing ringlock scaffolding on standardized pallet
    Ringlock Scaffolding Standards 90pcs Per Rack;
    Ringlock Scaffolding Ledgers 150pcs Per Rack;
    Ringlock Scaffolding Bay Braces 150pcs Per Rack etc.
    Port
    Guangzhou,Tianjing
    Lead Time :

    Quantity(Twenty-Foot Container)1 - 12 - 2>2
    Est. Time(day)1520To be negotiated
