Details of Construction Telescopic Scaffold Acrow Prop For Slab
Formwork Supporting
Description of construction jack
Telescopic shoring props are also named steel props or scaffolding
prop, which is used for slab formwork supporting.

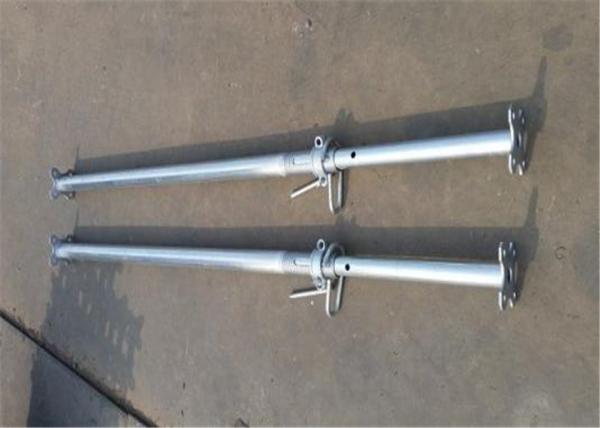

The scaffold telescopic shoring props are made of two steel tubes,
one small tube inside large tube, so its length can be adjusted.
When you want to fix its height, you just need to insert the lock
pin into the hole on tube, this is very convenient.
The telescopic shoring props are very flexible in use, workers can
place the scaffold construction jack in buildings according to the
concrete slab thickness. so you can save much money and time.
Material: AJ scaffold acrow prop is made of Q235 steel tube, prop nut and
thread is casting iron.
Components: Adjustable steel acrow prop include inner tube, outer tube, prop
base plate, prop nut, prop thread and lock pin.
Surface treatment:Shoring prop can be hot-dip galvanized,dip painted or powder
coated.
we can provide different types and various sizes of telescopic
steel prop for you.
Light duty steel shoring prop:
MIN | MAX | INTERNAL TUBE | EXTERNAL TUBE |
1.6M | 3.0M | 40MM*2.0MM | 48MM*2.0MM |
| | 48MM*2.0MM | 56MM*2.0MM |
1.8M | 3.5M | 40MM*2.0MM | 48MM*2.0MM |
| | 48MM*2.0MM | 56MM*2.0MM |
2.0M | 3.5M | 40MM*2.0MM | 48MM*2.0MM |
| | 48MM*2.0MM | 56MM*2.0MM |
Heavy duty steel shoring props:
MIN | MAX | INTERNAL TUBE | EXTERNAL TUBE |
1.8M | 3.2M | 48MM*2.0MM | 60MM*2.0MM |
2.1M | 3.4M | 48MM*2.0MM | 60MM*2.0MM |
2.2M | 4.0M | 48MM*2.0MM | 60MM*2.0MM |
2.4M | 3.9M | 48MM*2.0MM | 60MM*2.0MM |
3.5M | 4.0M | 48MM*2.0MM | 60MM*2.0MM |
3.0M | 5.0M | 48MM*3.5MM | 60MM*3.5MM |
(1)Steel prop is mainly made of bottom plate, outer tube, inner
tube, swivel nut,cotter pin, upper plate
and the accessories of folding treipod, head jack, the structure is
simple and flexible.
(2)The structure of steel prop is simple, so it is easy to assemble
and disassemble.
(3)Steel prop is adjustable because the inner tube can extend and
shrink in the outer tube, so it can be
adjusted according tothe required height.
(4) The steel prop can be reused. Even though it is out of work,
the material can also be recycled.
(5)Steel prop can be adjusted according to the different height of
the cnstructions.
How to buy your ideal products?
You can provide us your drawing, and we will produce as your
drawing.Or we can design as your requirements if you do not have a
clear plan.
What is the delivery time?
It depends on order quantity.Generally, the delivery time will be
within 10 to 15 days.
How about our product quality?
Our steel prop piles are manufactured with first quality materials
What is steel quality?
This system is built from Q235 steel conical pipe with welded
blades,and can be applied in a wide variety of different geological
locations.
